Description
DESCRIPTION

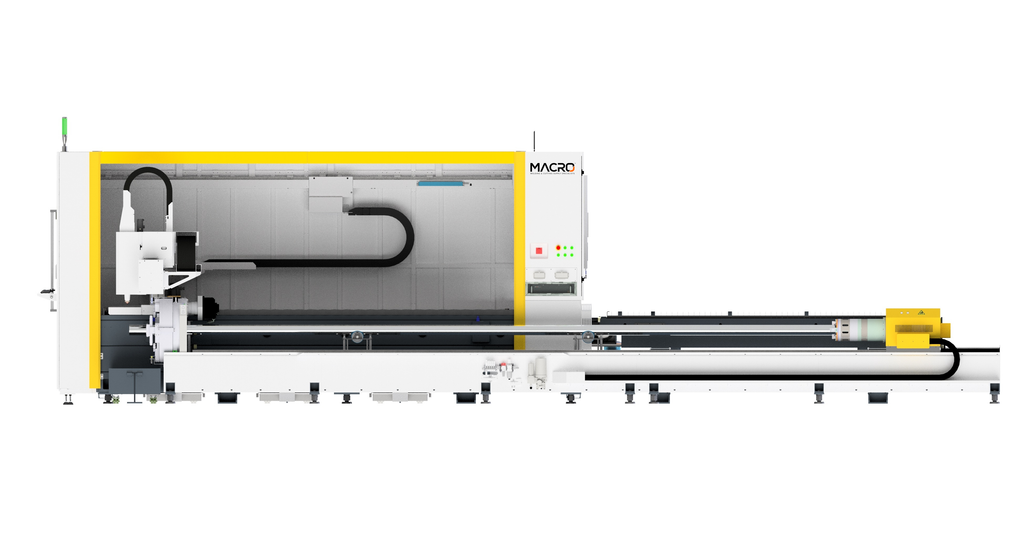

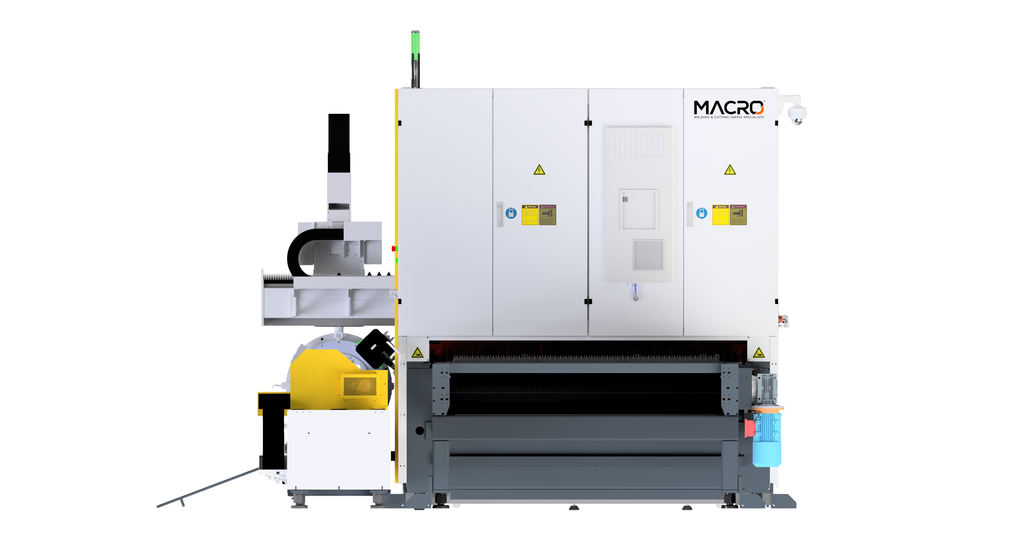

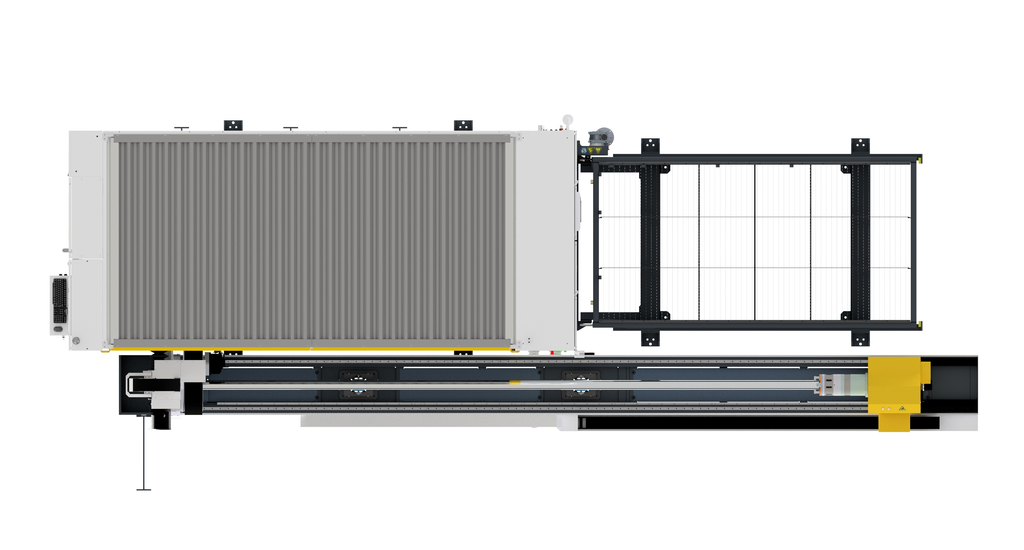

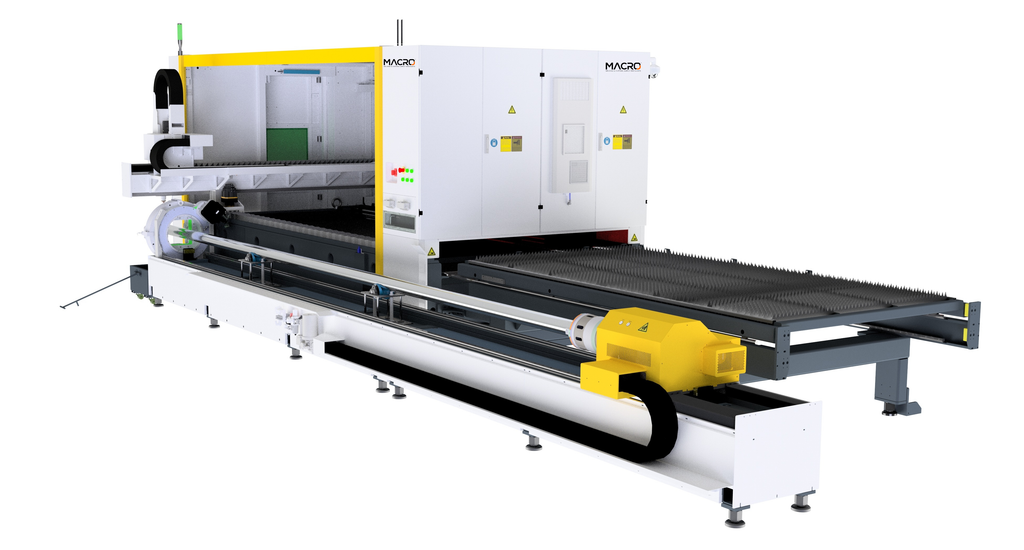

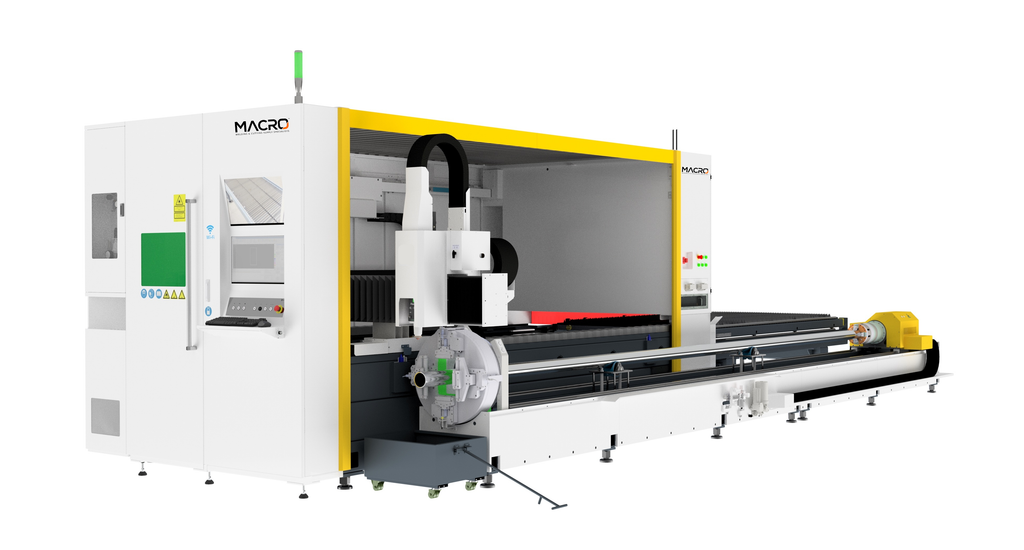

The MACRO Cobalt-T combines the high-production performance and heavy-duty build of the Cobalt with an integrated tube-cutting attachment for added versatility. Designed to process tube sections rather than full-length tube, it allows workshops to cut both flat sheet and tube components within a single, efficient system. Built with high-quality components and a robust structure, Cobalt-T delivers reliable, precise results while remaining simple to operate. Fully installed by MACRO’s expert technicians and supported by lifetime aftersales support, Cobalt-T is a practical solution for businesses needing expanded cutting capability without the footprint or complexity of a dedicated tube laser.
Features & Benefits:
- Sheet and Tube Cutting Abilities
- Lifetime Aussie service + technical support
- Production machine – continuous running
- High quality, Heavy Duty structure
- High quality, Heavy Duty structure
- Fume extraction and filtration
- Large viewing screens
- User-friendly USB port for input & output of programs
- User-friendly USB port for input & output of programs
- Super high accuracy
- High acceleration speeds
- 24” monitor with keyboard + mouse
- Easy to clean waste draw
-
Max positioning speed of 140,000mm per minute!
SOFTWARE
CypCut sheet cutting software is an in-depth program for fiber laser cutting machines. It simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one. From drawing and nesting to workpiece cutting, everything can be done in CypCut in just a few quick clicks.
- Microsoft Windows based controller interface.
- Automatic optimization of imported drawings.
- Concise parameters setting: Micro Joint, lead, cooling point, compensate, Bridge, Measure, Fillet, Release.
- Powerful editing tools for large-scale or bulk modifications.
- Feasible control bar for processing- it supports floating coordinate system and workpiece coordinate system. It not only meets the demand of flexible production but also facilitates mass production.
- Abundant local statistics.
- Accurate tracking-edge assistance supports Photoelectric edge searching and Capacitor tracking edge.
- Real-time frequency and power curve - laser radiation is automatically adjusted according to the speed of movement of the cutting head.
- Rectification of deviation or offset from the dual-drive gantry.
- Provides common drawing functions (similar to AutoCAD).
- Supports multiple files formats such as AI, DXF, PLT, Gerber, and LXD, accepts international standard G codes generated by Master Cam, Type3, and other software, and automatically optimizes when external files such as DXF are opened/imported, saving time and efficiency.
- Standard material library.
- Rich process layer interface - Up to 16 layers, and each layer can be individually set including cutting speed, laser power, air pressure, cutting height and other process parameters.
- Simple software - quick, easy and intuitive to learn.
SPECIFICATIONS
- Bed Size: 1.5m x 3m
- Fume Control: Fume Extraction
- Software: CypCut
- Cutting Head: MAX
- Cutting Torch: Ospri
- # Cutting Head/s: 1
- Scriber: Yes - Standard
- Input Voltage: 230V/415V - Three Phase
- Dimensions (L x W x H - mm): 9820 x 2200 x 2480
- Weight (kg): 2,710
- Warranty: 2 Years
