Cutting Area: 1.2m x 1.2m
Fume Control System: Waterbed
Plasma System: MACRO IGNITE 75
Sale price$22,916.30


or Zip it from $10/week with



The MACRO SPARK Series is a feature-packed cutting powerhouse, with a robust and fully welded free-standing table - available in a range of cutting area sizes.

With a built-in controller, this compact unit is the perfect solution for workshops that are tight on space or the more budget-conscious buyer.

Suitable for a wide range of applications, we have customers from all industries cutting with the power and precision that the MACRO SPARK Series systems has to offer... just to mention a few areas of application from our current customers, metal fabricators, TAFE's and Uni's, artists, craftspeople, shed manufacturers, machine engineering and production... and much more!

Delivering premium cut quality, the MACRO SPARK series can pierce up to 25mm thick at a speed of up to 6,000mm per minute! (depending on the plasma source selected).

Capable of cutting a variety of materials - including, but not limited to; mild steel, stainless steel, aluminium, copper, brass, zinc + much more!

It can even cut corrugated metals and mesh!

Not sure if this is the right solution for you?
You can call, email or message our team to have a chat about your business and what type of solution would best suit your application, and also help you out with trade pricing.

Features + Benefits (Cutting Bed + Controller):

  • Lifetime Aussie Tech + Technical Support
  • High quality + heavy duty structure
  • FastCam Software - Australian owned operated & supported
  • Fume controlled via waterbed

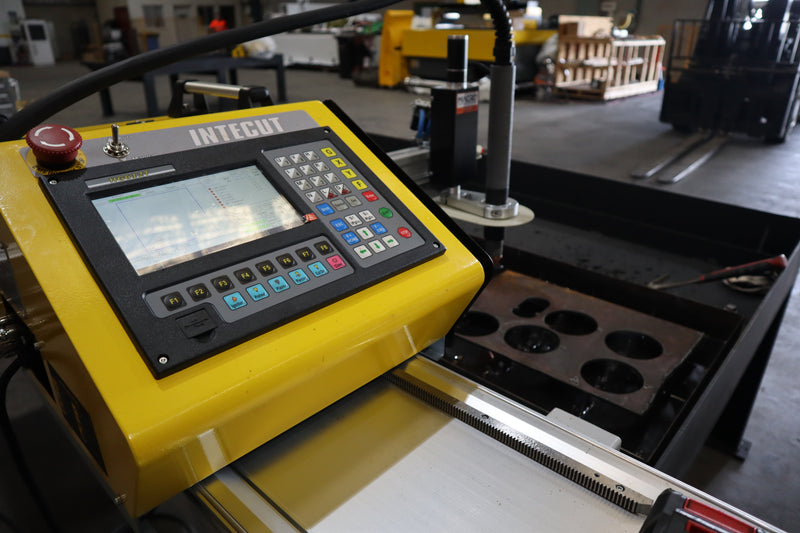

  • Built-in controller
  • Gas cutting ready
  • Safe auto ignition
  • User-friendly USB port for input & output of programs
  • Plug + Play - Quick & easy installation
  • Flexible Functionality - Can use either compressed air or gas
  • Large program memory
  • Auto-torch height control
  • Economical - Low operation cost
  • Multi-function - cut, pierce, bevel
  • Shape Library - 50 Standard Shapes
  • Cut up to 6,000mm per minute
  • Oxy cutting for thicker materials



The MACRO SPARK Series comes with a suite of supporting FastCam software. The FastCam software suite, is a simple yet powerful package, to get your design from concept to cut. This suite is comprised of 3 major components and is detailed below.


  • 2D Drawing Editor with CAD Tools
  • Import DXF, DWG, StruCAD, DSTV/NC1, IGES files.
  • Convert vector-based PDFs to CAM.
  • Multi-torch & hi-def plasma support
  • Secondary process support (drilling, marking etc)
  • Integrated postprocessors with ESSI, EIA machine language support
  • Interpret/clean/compress CAD files
  • Edit and Output NC code
  • CAD part extraction and cut list
  • Output (Fast)CAM, DXF, IGES & NC code.
  • Kerf compensation (offset)
  • Reverse engineer NC files
  • Convert holes to points (for drilling)
  • Line & drill point marking
  • Tabbing & ability to move pierce points
  • Manual tool pathing
  • Automatic tool pathing
  • Multi torch cutting
  • Multi torch variable cutting
  • Bulk processing of files
  • Marking
  • FastCAM Text Marking -for part ID (with scribe)


  • Automatic nesting from the cut list
  • Automatic nest analysis & collision check
  • Full Shape Nesting - DXF, DWG, NC, CAM, DSTV
  • Triangular (odd shape) Nesting
  • Manual Array Nesting
  • Automatic Array Nest (matches similar size parts)
  • Remnant Nesting (nest into the cut plate)
  • Manual Nesting (add parts one at a time)
  • Interactive Nesting (jostle, move, rotate parts)
  • Automatic Nesting (nest multiple parts based on your settings)
  • Common Cut Nesting
  • [Simple] Bridging (manually connect parts)
  • Bridge Nesting (various automatic options)
  • Chain cutting & Stitch cutting
  • Single plate nesting
  • Nesting over multiple plates
  • Cut Nest by Process OR Part
  • Part Marking in Nesting (visual ID)
  • Movement Thermal Analysis
  • Gas Axe (skeleton breakup) Automatic
  • Gas Axe (skeleton breakup) Manual


  • Verify NC Code
  • Estimating data (cut time, distance, material etc)
  • Simulate cut paths generated in FastCAM or FastNEST
  • Cost analysis on designs
  • Generate quotes on designs for clients


    Table and Controller specifications.
    For plasma machine specifications please see the individual machine links in the 'Cut Data' tab.

    Bed Size
    • 0.6m x 0.6m
    • 1.2m x 1.2m
    • 1.2m x 2m
    • 1.5m x 3m
    Fume Control Waterbed
    Software FastCam
    # Cutting Heads 1
    Scriber NONE
    Input Voltage 240V - Single Phase
    Dimensions (L x W x H - mm)
    • 1050 x 1100 x 1400
    • 1850 x 1900 x 1400
    • 2510 x 1900 x 1400
    • 3450 x 3820 x 1400
    Weight (kg)
    • 350
    • 450
    • 750
    • 950
    Warranty  3 Years on Table



    See below some quick specs, for more information please click on the Plasma Machine name to be taken to its dedicated product page:


    Current Range: 25-70 Amps
    MAX Pierce Depth: 15mm


    Current Range: 20-100 Amps
    MAX Pierce Depth: 20mm

    Hypertherm Powermax 45

    Current Range: 10-45 Amps
    MAX Pierce Depth: 12mm

    Hypertherm SYNC 65

    Current Range: 20-65 Amps
    MAX Pierce Depth: 16mm

    Hypertherm SYNC 85

    Current Range: 25-85 Amps
    MAX Pierce Depth: 16mm

    Hypertherm SYNC 105

    Current Range: 30-105 Amps
    MAX Pierce Depth: 22mm

    Unimig Razor 45

    Current Range: 20-45 Amps
    MAX Pierce Depth: 8mm
