MACRO™ - ONYX - CHOOSE YOUR KW

DESCRIPTION

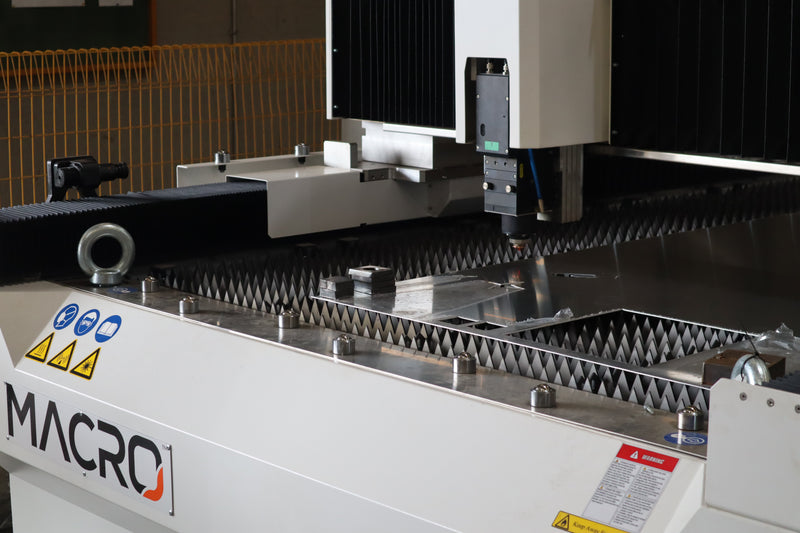

The MACRO Onyx is a compact, high-performance single-bed fiber laser designed for workshops that want speed and precision without sacrificing valuable floor space. Its streamlined footprint makes it easy to integrate into existing operations, while the intuitive controls ensure quick and simple day-to-day use. Installed by MACRO’s experienced technicians, the Onyx is commissioned quickly and smoothly, delivering high-quality results from day one. Fast, stable and built for consistent output, the MACRO Onyx is a reliable production machine that works efficiently without unnecessary complexity.

Features & Benefits:

• Lifetime Aussie service + technical support
• Small, simple footprint
• High quality, heavy duty structure
• Simple, easy-to-use software
• Fume control
• Large viewing screen
• User-friendly USB port for input and output of programs
• Complete technician installation
• Super high accuracy
• High acceleration speeds
• 24” monitor with keyboard + mouse
• Easy to clean waste draw
• Max positioning speed of 140,000mm per minute!

SPECIFICATIONS

• Motors & Drive System: Premium Servo Motors
• Electrical Data: 3-Phase
• Controller Hardware: 24" screen, keyboard and mouse
• CNC Controller Interface: Windows
• Nesting Software: CypCut/RayTools
• Fume Control: Fan System/Suction Filter System
• Effective Cutting Width (mm): 1524mm
• Effective Cutting Length (mm): 3100mm
• Floor Space (m): L 4.0M x W 2.5M
• Acceleration Speed: 0.8G
• Laser Capacity: 1.5kW, 2kW, 3kW, 4kW, 6kW
• Cutting Head: MAX/RayTools
• Cutting Torch: Boci/RayTools
• Wi-Fi: Compatible
• Remote Diagnosis: Compatible
• Warranty: 2 Years

FAQs

What makes the Onyx fiber laser CNC machine different?

The MACRO Onyx stands out for its compact footprint, simple operation and reliable performance. It is designed for workshops needing a production-ready system without unnecessary complexity, making it easier to bring cutting in-house while maintaining consistent, high-quality output.

What thickness can the Onyx fiber laser cut?

The thickness the Onyx fiber laser cutting machine can cut depends on the selected power level and material type. Higher kW options allow for thicker materials and faster cutting, while lower kW setups are suited to thinner materials and general fabrication work.

Is the Onyx suitable for small or large workshops?

The Onyx is best suited to small to mid-sized workshops. Its compact design and flexible workflow make it ideal where space is limited, while still delivering the performance needed for reliable daily cutting across a range of fabrication tasks.

Does the Onyx machine support automation?

No, the Onyx uses a manual workflow rather than automated material handling. This keeps the system simple and flexible, so it’s well suited to jobbing environments or workshops that prioritise ease of use over high-volume, continuous production.

What software is used to operate the Onyx CNC laser?

The Onyx uses a Windows-based CNC system with integrated CAD, CAM and nesting software such as CypCut. This setup simplifies job preparation, improves material usage and provides a familiar interface for operators using a fiber optic laser cutting machine.

What is included with the Onyx fiber laser machine?

The Onyx is delivered as a complete, production-ready system. It includes the cutting platform, fiber laser source, CNC control interface, integrated software and fume extraction or filtration, ensuring the machine is ready for operation from day one.

How easy is it to operate the Onyx fiber laser?

The Onyx is designed to be easy to operate, with intuitive controls and a straightforward interface. It reduces the learning curve, allowing operators to become productive quickly without requiring advanced technical experience or extensive training.

What maintenance is required for the Onyx machine?

The Onyx requires routine maintenance typical of a fiber laser system, including basic cleaning, inspection and servicing of key components. Compared to alternative cutting methods, it offers lower maintenance requirements, helping reduce downtime and keep operations running consistently.

What warranty and support come with the Onyx model?

The Onyx is backed by warranty and ongoing support, including technician installation, servicing and access to spare parts. We’ll address any issues quickly to help reduce downtime and maintain consistent performance. If you have specific questions about support or coverage, contact us. Our experts are available to provide further details.
